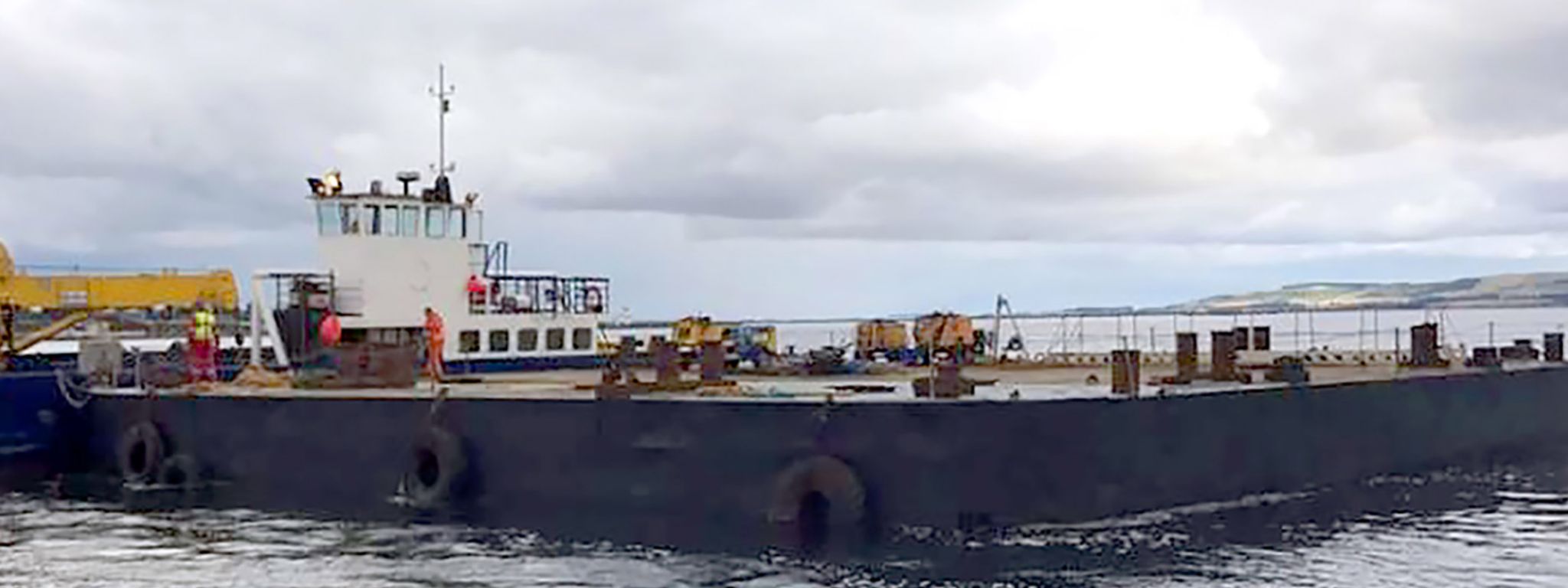

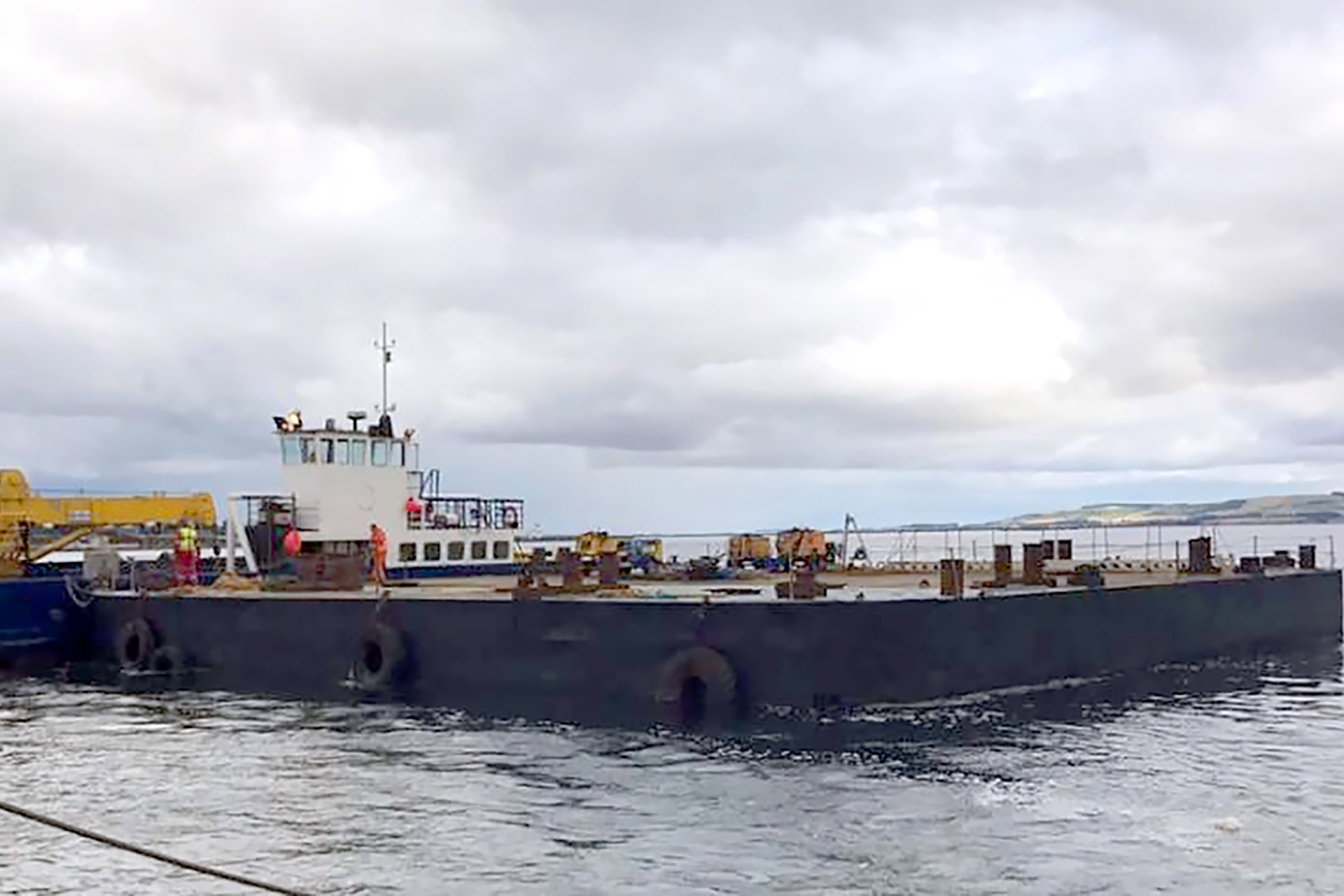

WB1 Barge
- Overview
- Specifications
- Gallery
Working Platform
4 point mooring system (4no. 15t winches, anchors as required), 56t/m hydraulic crane, Containerised 160Kva Generator & Hydraulic Power Pack and Welfare Unit.
WB1 Barge Specification
- Working Platform: Steel Barge (Dumb)
- Length: 24.4m
- Loadline Length: 23.42mm
- Length Between Perpendiculars: 24.4m
- Breadth Moulded: 24.4m
- Depth Moduled: 2.33m (amidships)
- Max Draught Amidship: 2.195m form U.S.K
- Max Displacement: 993.32 tonnes
- Lightship: 405 tonnes
- Assigned Freeboard Mark: 0.75m
- Area of Operation: Category 3 (20NM) Spec Item One
